Full Matrix Capture (FMC)

Follow

In this tutorial we will learn how to set up a simple 2D model of a Full Matrix capture (FMC) data acquisition of a steel block with a defect positioned at the centre of the block. We will be using the CAD importation functionality.

We will learn:

  • How to set up a 2D model from CAD importation
  • How to assign a time dependent load
  • How to create the 2D geometry using simple geometry shapes
  • How to solve the model to calculate the acoustic pressure on each of the inactive elements

Problem Definition

Characteristics of the model

Model:

Steel block of dimensions 10mm x 18mm with a defect of radius 0.25mm centered in the middle of the block.

8 elements of dimensions 8mm x 0.2mm seperated by a 2mm gap

Mesh Size: 15 Elements / Wavelength
Analysis Time: 6e-05 seconds
Output Results:

- Time History of Acoustic Pressure at each element

 Material Data

Name Mild Steel, Generic
Code Name steel
Density 7900 kg.m-3
Bulk Velocity 5900 ms-1
Shear Velocity 3200 ms-1

Note: Material Data in OnScale are generally defined using the bulk velocity and the shear velocity parameters instead of the more traditional Elastic Modulus and Poisson's Ratio. You can check this page if you want to understand the relation between those parameters.

Why This Simulation?

Full Matrix Capture (FMC) is a data acquisition strategy, FMC allows for the capture of A-Scan signals from every transmit-receive combination for a given ultrasonic phased array transducer.

For example for a 16-element probe the probe will be pulsed 16 times and 256 A-scans are gathered. This model uses 8 elements we are only pulsing one of the elements and receiving on the remaining 7, in total if we simulated this in full we would gather 64 A-scans.

From this raw A-scan signals stored on a drive, it is possible to generate images from this data post-process.

The Simulation Process

Let's go through the step by step tutorial and see how to simulate this in OnScale!

Step 1 - Create a New Project

Click New Project to open up the New Project window

  1. Give the project a name
  2. Set Project working units
  3. Change Model Type to 2D Model
  4. Chose the project save location click '...' and choose an appropriate save location
  5. Click OK

Step 2 - Import STEP file

Download: FMC STEP file

  1. Select Import icon in toolbar
  2. Select ... and open the downloaded file 'FMC_2D.step'
  3. Select Import

Step 3 - Add Material to Project Materials

Click Import Geometry

  1. Click Project Materials
  2. Expand Misc
  3. Add Vacm to the project materials database (double click)
  1. Right click vacm and select Copy Material
  2. Rename vacm to vacm2
  3. Click OK

Repeat steps 1-3 and add the material Steel to the project material database by expanding the dropdown menu METAL

Step 4 - Change Project Setting

  1. Click Setup
  2. Click Project Settings
  3. Enable the option to change Frequency of Interest
  4. Expand the dropdown menu
  5. Change the Frequency of Interest to 5e6

Step 5 - Assign Materials to Parts

Assign steel

  1. Click and Expand Geometry
  2. Select part_9
  3. Assign material Steel

 Assign vacm to the first element

  1. Select part_8
  2. Assign material vacm

 Assign vacm to the remaining elements element

  1. Select part_1 to part_7
  2. Assign material vacm2

Step 6 - Define a Time Function

We will now add a Ricker Wavelet drive function for later use as out loads require a time function be set.

  1. Expand Forcing Functions
  2. Click '+' to open the Define Input Time function window
  3. Change to Ricker Wavelet
  4. Set Frequency to 5e6
  5. Click Insert to close the window. A record called timefunc_1 will be added to the window

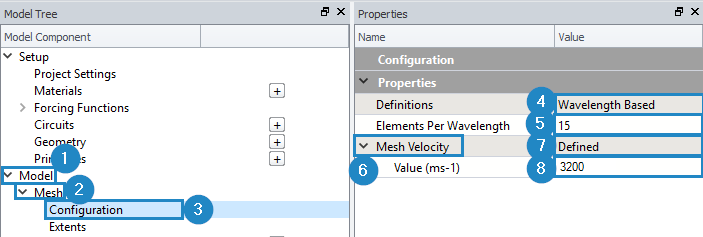

Step 7 - Mesh Settings

  1. Expand Model
  2. Expand Mesh
  3. Click Configuration
  4. Change Definitions to Wavelength Based
  5. Set Elements per Wavelength to 15
  6. Expand Mesh Velocity
  7. Set Mesh Velocity to Defined
  8. Set Mesh Velocity Value to 2340

Step 8 - Create Loads

  1. Expand Boundary Conditions
  2. Click '+'
  1. Change Creation to Geometry Interface
  2. Change Geometry to part_8 (vacm)
  3. Change Interfacing Item to part_9 (steel)
  4. Click Create Load

Step 9 - Change Load Properties

  1. Click load_1
  2. Change Load Type to Pressure
  3. Change Forcing Function to timefunc_1
  4. Change Amplitude Scale Factor to 1

Step 10 - Change Domain Boundaries

Leave all other boundary conditions as Free this is the default boundary condition

  1. Click Domain Boundaries
  2. Expand X Minimum
  3. Change to Absorbing
  4. Expand X Maximum
  5. Change to Absorbing

Step 11 - Set Simulation Time

  1. Click Analysis
  2. Change Simulation Time to 6e-6

Step 12 - Outputs

We will add 8 time history outputs that will record the acoustic pressure on each element

  1. Click '+8 times this will create 8 outputs

Change output properties

  1. Click output_1
  2. Expand Location (mm)
  3. Change X to 5.4
  4. Change to 10

For all other outputs input the following location coordinates:

  X Y
output_2 6.4 10
output_3 7.4 10
output_4 8.4 10
output_5 9.4 10
output_6 10.4 10
output_7 11.4 10
output_8 12.4 10

Step 13 - Run on the Cloud

At this point the model is completely set up and it can now be run on the cloud.

  1. Click Run on Cloud
  2. Click Estimate
  3. Click Run

How to Get the Simulation Results?

The simulation results will need to be downloaded from the cloud storage in order to analyse the results in the post processor. More experience users may also be able to process Time Histories in Review.

  1. Click Storage this opens the window shown above
  2. Click Refresh
  3. Locate the job
  4. Click Download and select Download All

Step 14 - Check the Simulation Results

Switch to the Post Processor

  1. Click this icon to access the Post Processor

Open Results

  1. Locate the downloaded folder
  2. Expand the folder containing the results just downloaded this will be folder 1
  3. Double click the flxhst file to open them
  4. Click Results Manager

Plot Time History

  1. Double click aprs

Plot remaining Time History

  1. Double click aprs
  2. Change Plot Title to Acoustic Pressure on All Elements
  3. Set Y-Axis label to Acoustic Pressure
