Runtime Graphics - blank portions Answered
Hello,

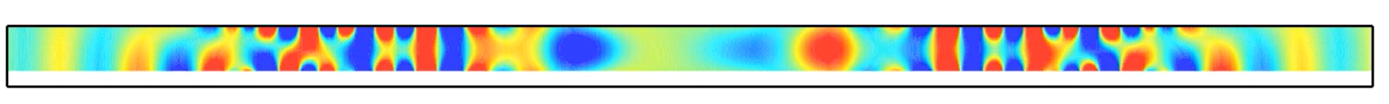

I'm running 2D dynamic simulations. In these, I have 2 pressure sources located on the top-center of the plate. The upper ~half of the plate is a single material. The lower section of the plate is segmented into other primitives/materials. After completion of the simulations, I'm outputting Runtime Graphics so I can visually inspect the results. As you can see below, however, only the upper section of the plate is displaying results. The other primitives/materials are blank. I placed an acoustic pressure probe in the area that's not being displayed, and there are readings being calculated there. So I know something is happening in the area, but I'd still like to have it display for visual inspections.
Do you have any suggestions? Thanks!
3 comments
Hi James,
Welcome to the forum!
Could you please share your file and any dependencies via your preferred file sharing service so we can try and debug this for you.
Best Regards,
Chloe
https://drive.google.com/file/d/1lOttP6VwHRv4f94aj4F2tzMOSxf5yUtH/view?usp=sharing
Thanks Chloe. The files are in the onscale_plate.zip folder.
Hi James,
Sorry about the delayed reply.
The reason you cannot see the materials at the bottom is because you have defined Begin Y and End Y the wrong way round. In Designer currently, Begin Y must be the smallest value and End Y must be the largest value. If you swap these around for primitive_4-7 then you will see the full model.
Best Regards,
Chloe
