Model Syntax Error Answered
Hello,
I'm trying to run the transducer on a cloud but it keeps giving this following error message

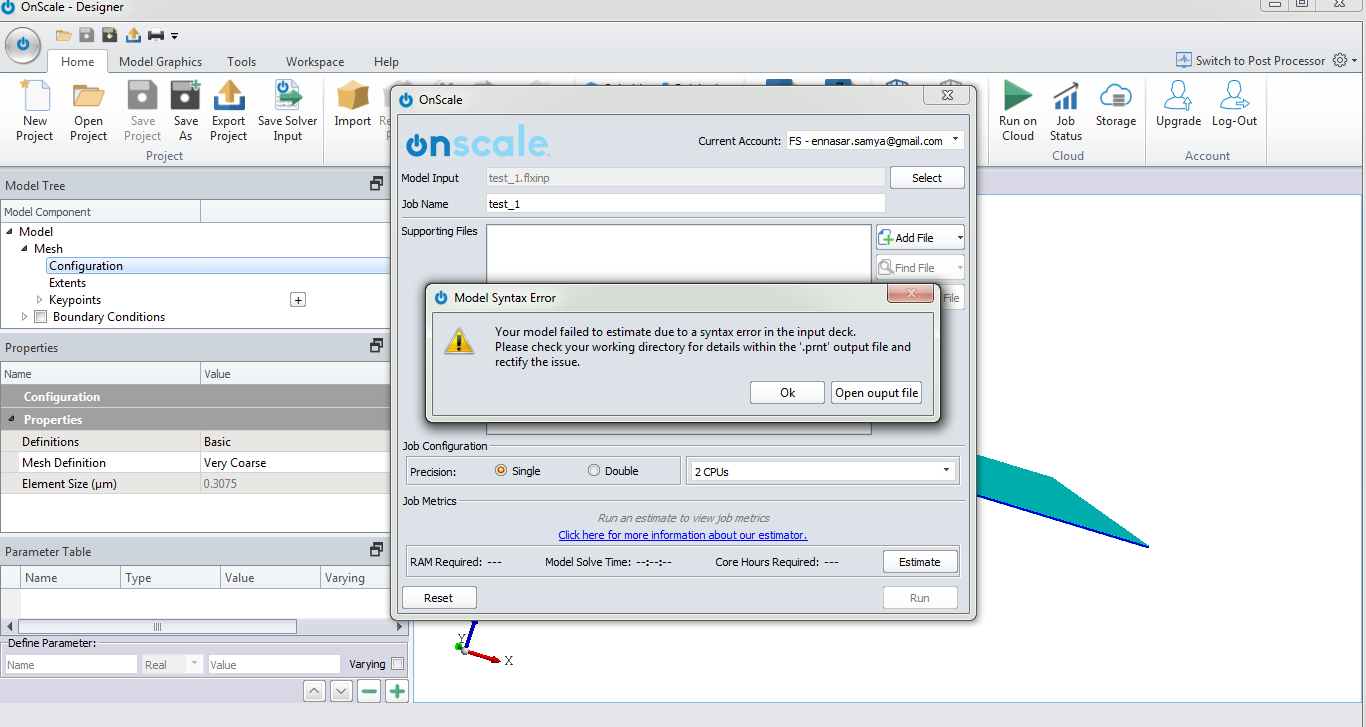

"Your model failed to estimate due to a syntax error in the input deck.
Please check your working directory for details within the'.prnt' output file and rectify the issue"
I tried rebuilding the model many times but I still get the same message, any idea whats the cause.
The model is built with the designer mode. Found a code file, but it does not contain an error message similar to a previous post.
Best Regards,
SD
6 comments
Hi SD,
Welcome to the forum!
A file should be generated called 'yourfilename-esitmate.flxprt'. This should contain the error message.
Best Regards,
Chloe
Hi, did you solve your problem? I have the same error, and i can't find the error in the generated output file!
Hello,
I had the problem but fixed somewhere about boundaries tried with a different model it's still the same result.
I hope someone can help with this.
Sincerely,
Hello,
Thank you for your reply.
Update, according to flxprt file the error message ((No electrode nodes defined)). I added a time function to load 1 facing water and ground facing back with geometry. Still, the issue persists.
((0 nodes have been added to electrode load_1))
((0 nodes have been added to electrode load_2))
still working on it.
Sincerely,
Hi SD,
Have a look at this article that covers this error - https://support.onscale.com/hc/en-us/articles/360007264097-Troubleshooting-errors
Best Regards,
Chloe
Hello,
Thank you for your response.
Seemed I had an issue with the mesh size, had to change element per wavelength until worked.
Sincerely,
