I have created an assembly containing 3 closed composite parts and want to do mechanical testing where they're bolted together using different bolt diameters. Onscale import from oneshape only shows them as parts (so can import only one) and doesnt give the option to import the assembly. What is the best way for onscale to see multiple 'welded parts' that have no degress of freedom to move within the part. Thanks

1件のコメント

  • 正式なコメント
    Avatar
    Kevin Chan

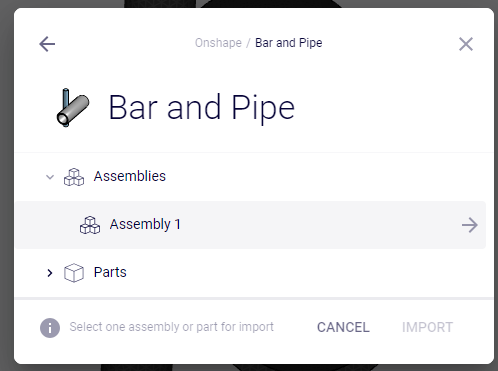

    If you have created an assembly in Onshape it should appear within the import window:


    To create zero degree of freedom for specific parts, you can use the Restraint boundary condition and change the "Applied to" setting to "Part":



    Hovering over the boundary condition in the tree will highlight the parts it is applied to.

    Hope this helps.

    Thanks,
    Kevin
