Errors in Running Program after defining Global Material 回答済み

Avatar
송준서

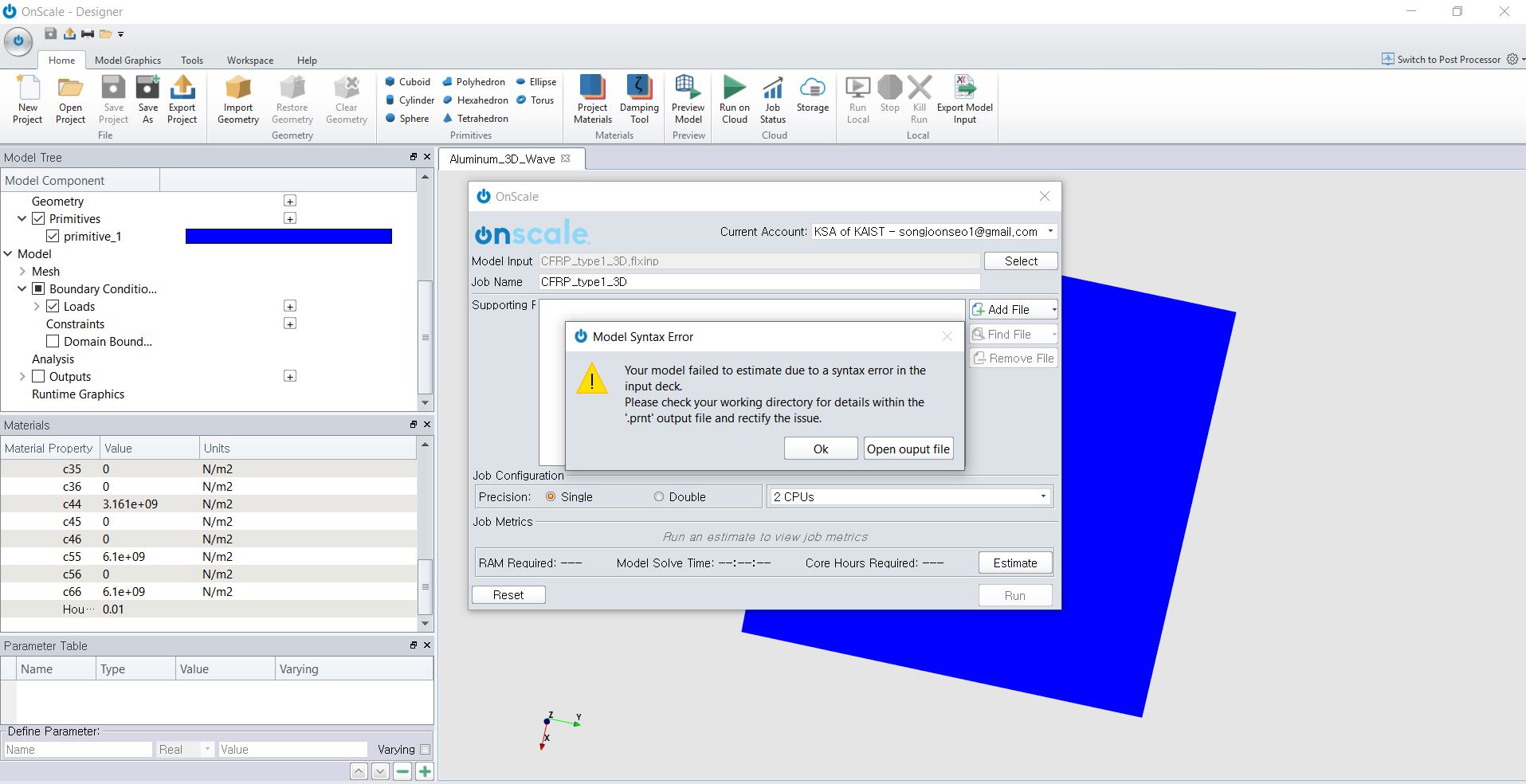

I am modelling wave travel in different material plates, and tried to use aluminum (defined in onscale) and a CFRP material (defined by myself). The code runs fine when I use the aluminum, but the error below keeps showing up when I used the CFRP plate that I have defined. The error shows up when I click on estimate button before running.

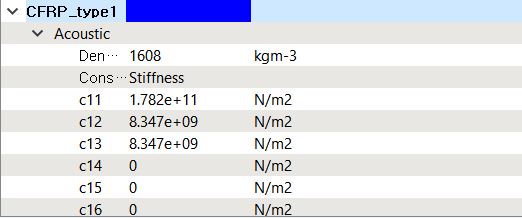

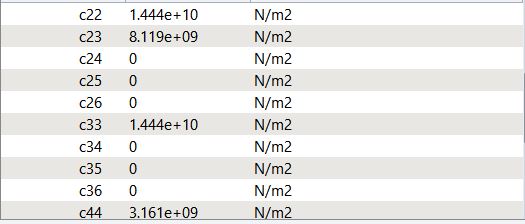

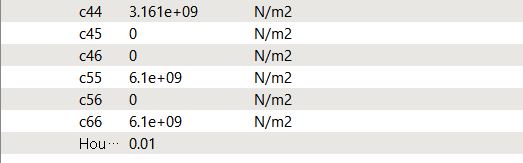

I used stiffness matrix to define the material and defined it as linear elastic anisotropic. The following photos below shows how I defined the material.

Could you help me figure out how to solve this issue? Thank you very much.

1件のコメント

  • 正式なコメント
    Avatar
    Chloe Allison

    Hi there,



    If you open the '-estimate.flxprt' file that is generated when you estimate the model, it should contain the error message which will give you a better idea of where you are going wrong in your material definition.



    Best Regards,

    Chloe
