Plotting Impedance in Water 回答済み

Avatar
Laura Morrison

Hi there,

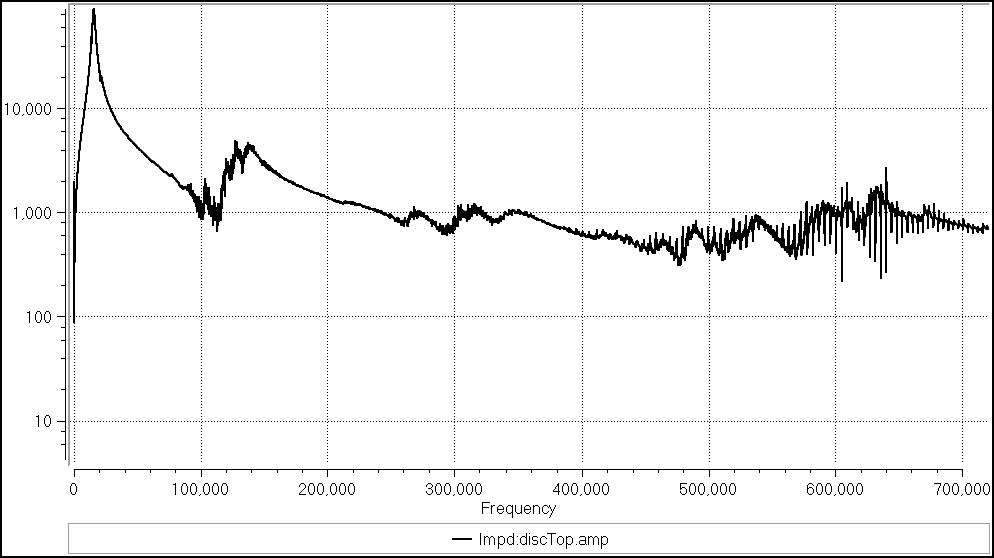

I am trying to get the impedance plot of a transducer in water but the output I get is very noisy as shown below. I have a long simulation run time of 0.8 seconds but even with this, the charge does not completely fall to zero which I think might be causing the problem. I have added a damping resistor of 700 Ohms. Is there anything else I can do to make the impedance plot clearer?

1件のコメント

  • Avatar
    Chloe Allison

    Hi Laura,

    Are you able to share your model with us via your preferred cloud sharing service? 0.8 seconds is a long time. What is your frequency of interest? Is it a very low frequency transducer? If it is, there are a few things that can be done to help this like zoning.



    Best Regards,

    Chloe
